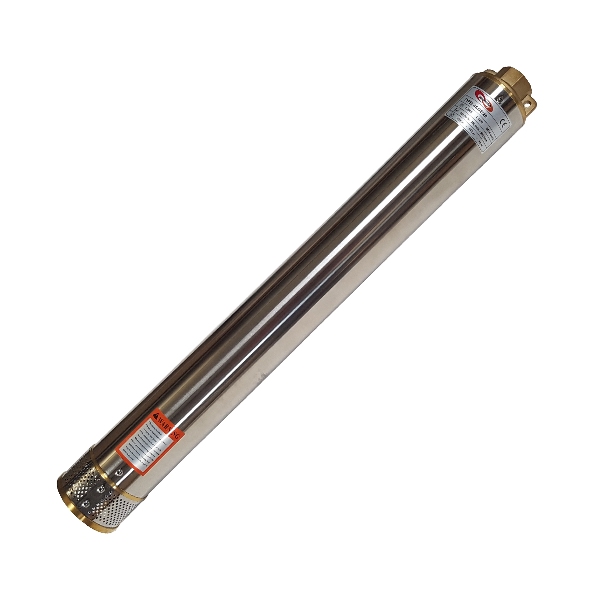

4SD2/21 Borehole Submersible Pump End Only 1.1KW

The Hurricane 4SD2/21 borehole submersible pump end requires a 1.1Kw submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 146m. Operating Conditions Maximum fluid temperature : up to 35°C Maximum sand content : 0.25% Minimum borehole diameter : 4″ (10.16cm) Motor & Pump Single Phase : 220V – 240V 1.1KW 1.5HP / 50Hz or Three Phase : 380V – 415V 1.1KW 1.5HP/ 50Hz Equip with either a standard (manual) or an automatic control box 1.1KW 1.5HP (water level sensors) Warranty : 12 Month According to our general sales conditions Specifications Speed : 2850RPM Power : 1.1KW Power : 1.5HP Outlet : 32mm Pump Diameter : 100mm Pump Length : 702mm Pump Weight : 6.2KG Water Delivery Pump Curve
