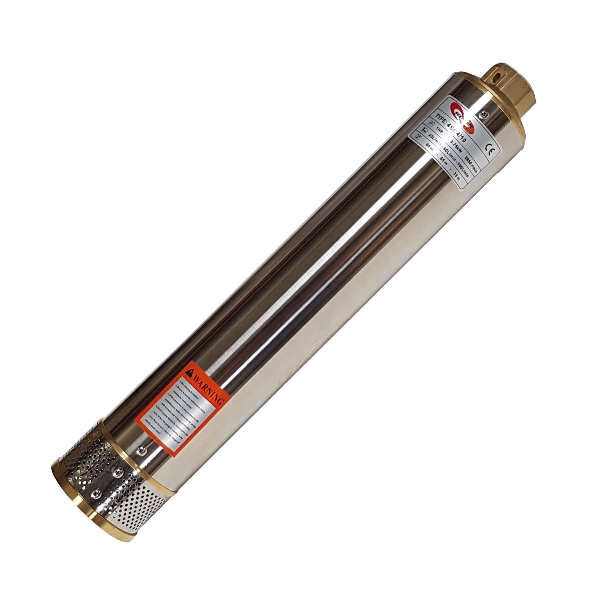

4SD4/10 Borehole Submersible Pump End Only 0.75KW

The Hurricane 4SD4/10 borehole submersible pump end requires a 0.75Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 69m. Operating Conditions Maximum fluid temperature : up to 35°C Maximum sand content : 0.25% Minimum borehole diameter : 4″ (10.16cm) Motor & Pump Single Phase : 220V – 240V 0.75KW 1.1HP / 50Hz or Three Phase : 380V – 415V 0.75KW 1.1HP / 50Hz Equip with either a standard (manual) or an automatic control box 0.75KW 1.1HP (water level sensors) Warranty : 12 Month According to our general sales conditions Specifications Speed : 2850RPM Power : 0.75KW Power : 1.1HP Outlet : 32mm Pump Diameter : 100mm Pump Length : 515mm Pump Weight : 4.2KG Water Delivery Pump Curve 4SD4 Series Curves
