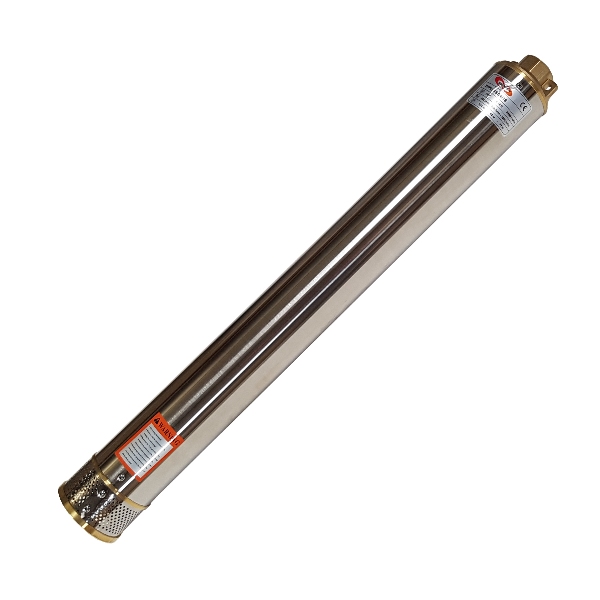

4SD4/18 Borehole Submersible Pump End Only 1.5KW

The Hurricane 4SD4/18 borehole submersible pump end requires a 1.5Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 124m. Operating Conditions Maximum fluid temperature : up to 35°C Maximum sand content : 0.25% Minimum borehole diameter : 4″ (10.16cm) Motor & Pump Single Phase : 220V – 240V 1.5KW 2HP / 50Hz or Three Phase : 380V – 415V 1.5KW 2HP / 50Hz Equip with either a standard (manual) or an automatic control box 1.5KW 2HP (water level sensors) Warranty : 12 Month According to our general sales conditions Specifications Speed : 2850RPM Power : 1.5KW Power : 2HP Outlet : 32mm Pump Diameter : 100mm Pump Length : 782mm Pump Wieght : 6.4KG Water Delivery Pump Curve 4SD4 Series Curves
