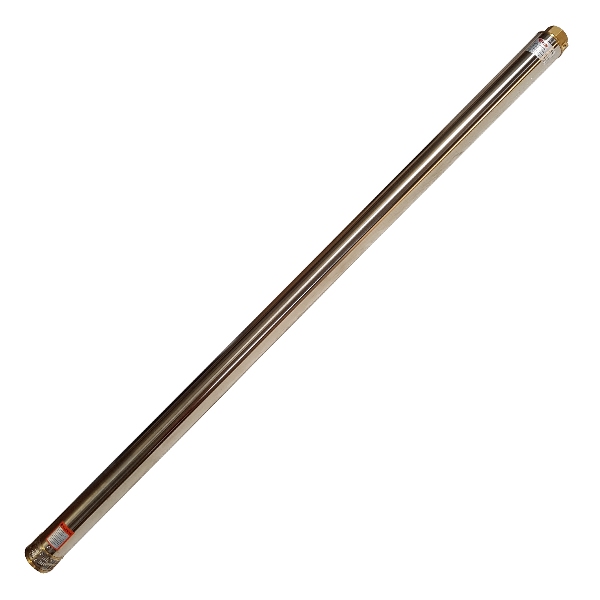

4SD8/45 Borehole Submersible Pump End Only 7.5KW

The Hurricane 4SD8/45 borehole submersible pump end requires a 7.5Kw submersible motor to drive it and is capable of delivering up to 60L/min at a depth of 237m. Operating Conditions Maximum fluid temperature : up to 35°C Maximum sand content : 0.25% Minimum borehole diameter : 4″ (10.16cm) Motor & Pump Three Phase : 380V – 415V 7.5KW 10HP / 50Hz Equip with a three phase 380V automatic control box 7.5KW 10HP (water level sensors) Warranty : 12 Month According to our general sales conditions Specifications Speed : 2850RPM Power : 7.5KW Power : 10HP Outlet : 32mm Pump Diameter : 100mm Pump Length : 2044mm Pump Wieght : 17.7KG Water Delivery Pump Curve
