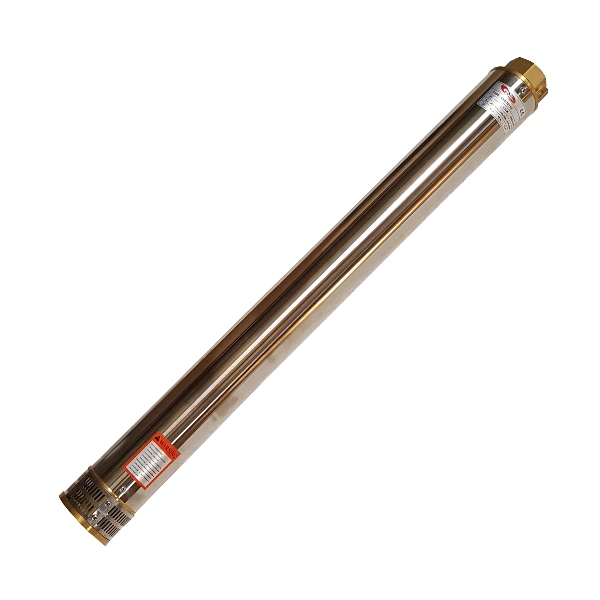

4SD12/11 Borehole Submersible Pump End Only 2.2KW

The Hurricane 4SD12/11 borehole submersible pump end requires a 2.2Kw submersible motor to drive it and is capable of delivering up to 90L/min at a depth of 59m. Operating Conditions Maximum fluid temperature : up to 35°C Maximum sand content : 0.25% Minimum borehole diameter : 4″ (10.16cm) Motor & Pump Single Phase : 220V – 240V 2.2KW 3HP / 50Hz or Three Phase : 380V – 415V 2.2KW 3HP / 50Hz Equip with either a standard (manual) or an automatic control box 2.2KW 3HP (water level sensors) Warranty : 12 Month According to our general sales conditions Specifications Speed : 2850RPM Power : 2.2KW Power : 3HP Outlet : 32mm Pump Diameter : 100mm Pump Length : 783mm Pump Weight : 7KG Water Delivery Pump Curve
