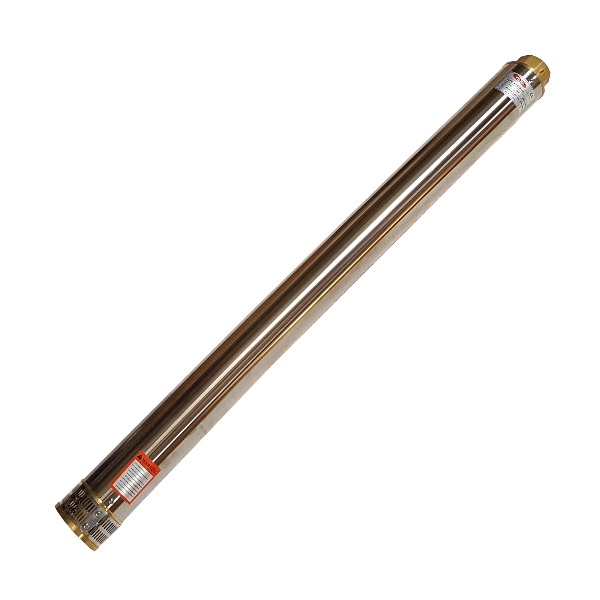

4SD12/16 Borehole Submersible Pump End Only 3KW

The Hurricane 4SD12/16 borehole submersible pump end requires a 3Kw submersible motor to drive it and is capable of delivering up to 90L/min at a depth of 83m. Operating Conditions Maximum fluid temperature : up to 35°C Maximum sand content : 0.25% Minimum borehole diameter : 4″ (10.16cm) Motor & Pump Three Phase : 380V – 415V 3KW 4HP / 50Hz Equip with an automatic control box 3KW 4HP (water level sensors) Warranty : 12 Month According to our general sales conditions Specifications Speed : 2850RPM Power : 3KW Power : 4HP Outlet : 50mm Pump Diameter : 100mm Pump Length : 1148mm Pump Weight : 10.6KG Water Delivery Pump Curve
