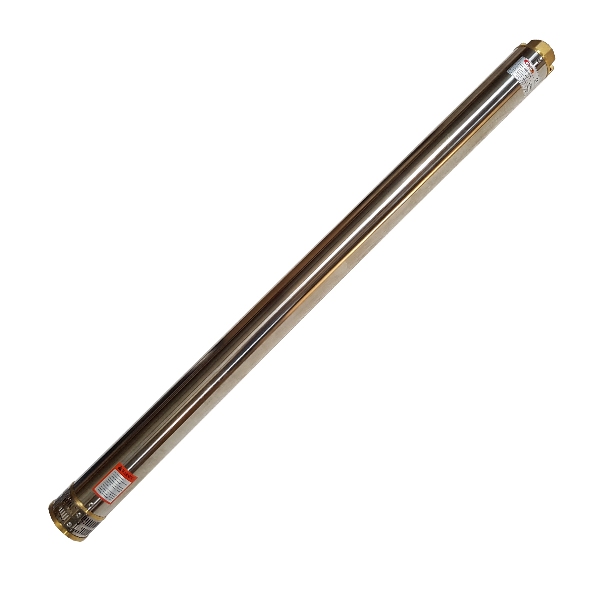

4SD12/20 Borehole Submersible Pump End Only 4KW

The Hurricane 4SD12/20 borehole submersible pump end requires a 4Kw submersible motor to drive it and is capable of delivering up to 90L/min at a depth of 104m. Operating Conditions Maximum fluid temperature : up to 35°C Maximum sand content : 0.25% Minimum borehole diameter : 4″ (10.16cm) Motor & Pump Three Phase : 380V – 415V 4KW 5.5HP / 50Hz Equip with an automatic control box 4KW 5.5HP (water level sensors) Warranty : 12 Month According to our general sales conditions Specifications Speed : 2850RPM Power : 4KW Power : 5.5HP Outlet : 50mm Pump Diameter : 100mm Pump Length : 1204mm Pump Weight : 10KG Water Delivery Pump Curve
